1, Wide operating temperature range from -55°C to +125°C
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6,Storing a large amount of electrical energy in a small volume.
7,Effectively reduces the energy loss caused by resistance in the circuit.
8, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available
Tantalum capacitor | |

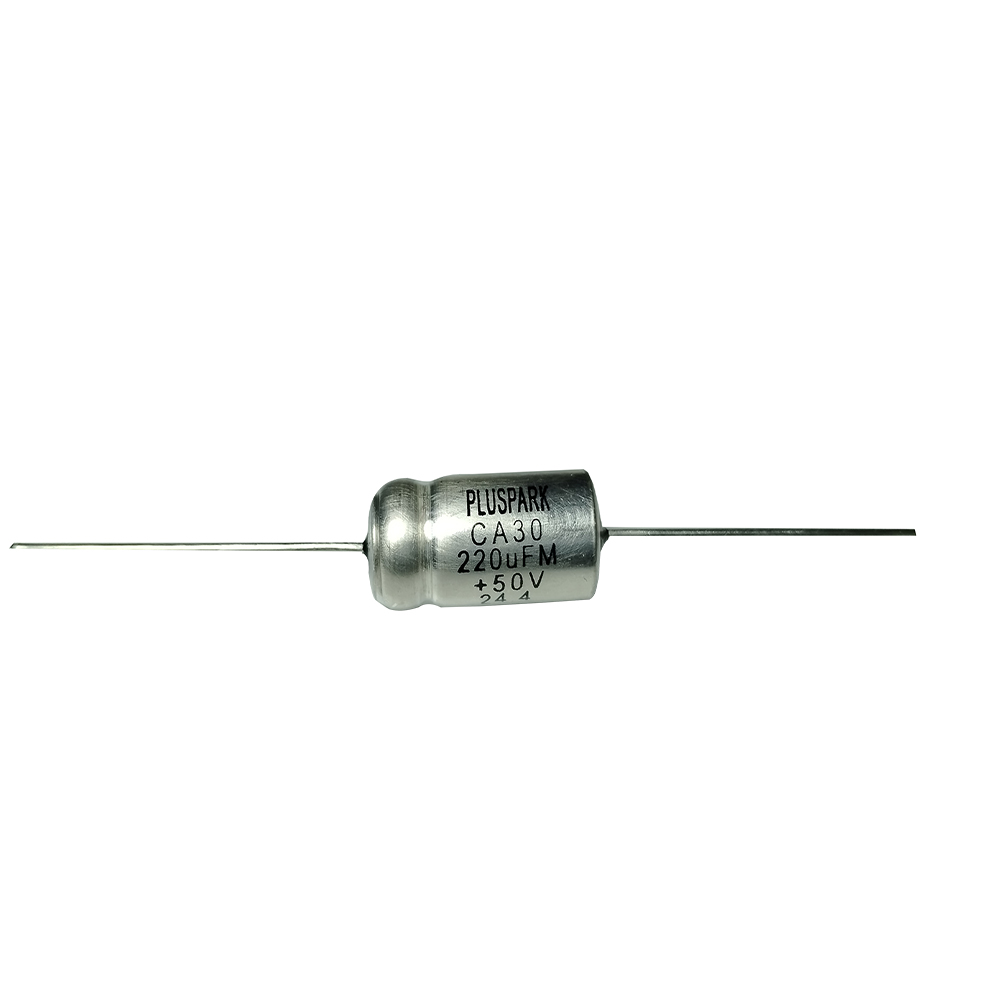

Item name | Wet Tantalum capacitor |
capacitance | 220uF,220MFD,220MKF |
Rated voltage | 50V |
Tolerance | M:(±20), K:(±10%) |
Nominal case Size (ΦD×L ) | 8x22mm |
Operate temperature | -55°C to +125°C |
Category Voltage | 30V |
Dissipation factor (max.) tgδ | 25 |
Impedance Ω (-55°c,100Hz) | 45 |
Series | CA30 |
Features | Hermetical seal, wet tantalum capacitor,low leakage current |
Mounting type | Through Hole |
Package/case | Axial wire leaded tubular case |
Brand | Pluspark |
Supplier | Shanghai Pluspark ElectronicsCo., ltd |
Rating of 50V
Tantalum Capacitor, Wet, Axial Wire Lead
Tantalum Capacitor 50V 1.0uF 5X10mm,1.0MFD,1.0MKF
Tantalum Capacitor 50V 1.5uF 5X10mm,1.5MFD,1.5MKF
Tantalum Capacitor 50V 2.2uF 5X10mm,2.2MFD,2.2MKF
Tantalum Capacitor 50V 3.3uF 5X10mm ,3.3MFD,3.3MKF
Tantalum Capacitor 50V 4.7uF 5X10mm,4.7MFD,4.7MKF
Tantalum Capacitor 50V 6.8uF 5X10mm,6.8MFD,6.8MKF
Tantalum Capacitor 50V 10uF 5X10mm,10MFD,10MKF
Tantalum Capacitor 50V 15uF 5X10mm,15MFD,15MKF
Tantalum Capacitor 50V 22uF 5X14mm,22MFD,22MKF
Tantalum Capacitor 50V 33uF 6X16mm,33MFD,33MKF
Tantalum Capacitor 50V 47uF 6X16mm,47MFD,47MKF
Tantalum Capacitor 50V 68uF 8X16mm,68MFD,68MKF
Tantalum Capacitor 50V 100uF 8X16mm,100MFD,100MKF
Tantalum Capacitor 50V 150uF 8X22mm,150MFD,150MKF
Tantalum Capacitor 50V 330uF 10X22mm,330MFD,330MKF
Tantalum Capacitor 50V 470uF 10X25mm,470MFD,470MKF
Tantalum Capacitor 50V 680uF 10X30mm,680MFD,680MKF
Tantalum Capacitor 50V 1000uF 10X33mm,1000MFD,1000MKF
