1, Wide operating temperature range from -55°C to +125°C.
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6, Effectively reduces the energy loss caused by resistance in the circuit.
7, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available.
8, very high CV per unit volume

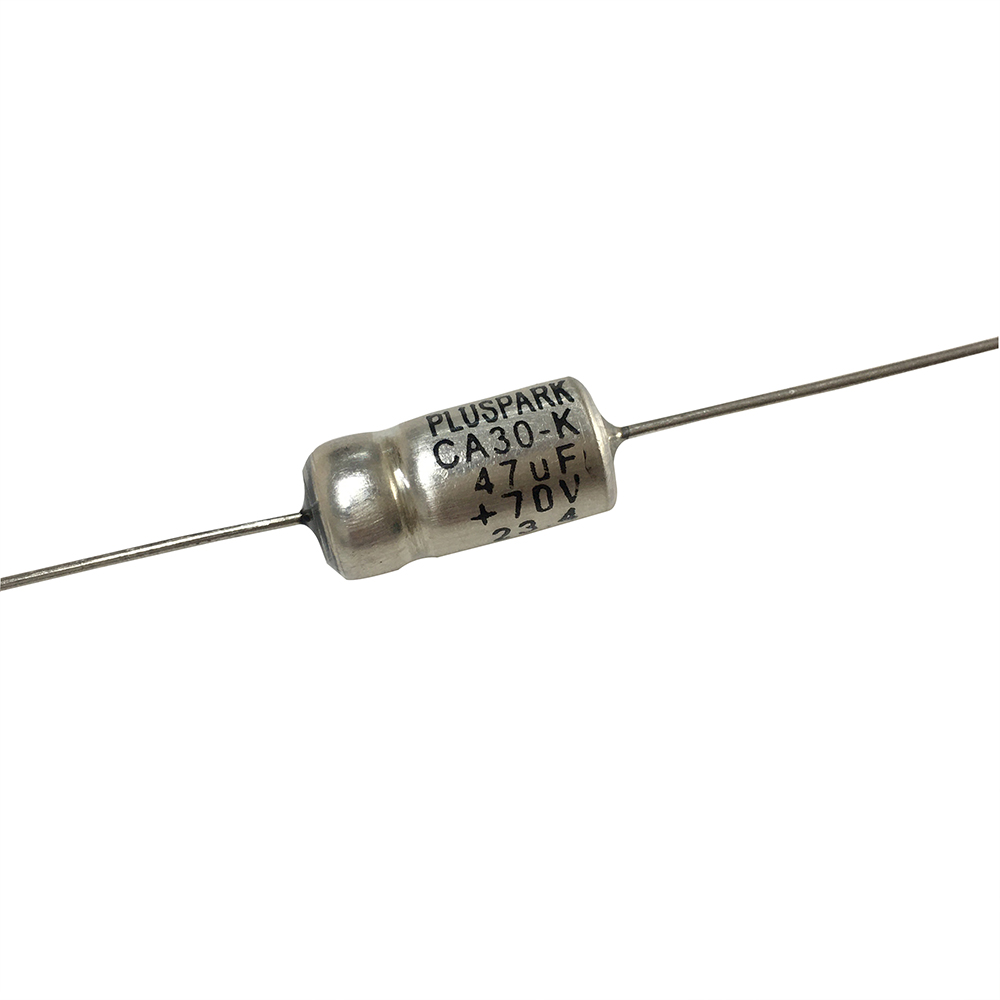

Tantalum capacitor | |
Item name | Wet Tantalum capacitor |
capacitance | 47uF,47MFD,47MKF |
Tolerance | M:(±20), K:(±10%) |
Nominal case Size (ΦD×L ) | 8x16mm |
Operate temperature | -55°C to +125°C |
Rated Voltage | 70V |
Category Voltage | 50V |
Dissipation factor (max.) tgδ | 15 |
Impedance Ω (-55°c,100Hz) | 80 |
Series | CA30 |
Features | Hermetical seal, wet tantalum capacitor,low leakage current |
Mounting type | Through Hole |
Package/case | Axial wire leaded tubular case |
Brand | Pluspark |
Supplier | Shanghai Pluspark ElectronicsCo., ltd |
Rating of 70V Tantalum Capacitor, Wet, Axial Wire
Lead
Tantalum Capacitor 70V 1.0uF 5X10mm,1.0MFD,1.0MKF
Tantalum Capacitor 70V 1.5uF 5X10mm,1.5MFD,1.5MKF
Tantalum Capacitor 70V 2.2uF 5X10mm,2.2MFD,2.2MKF
Tantalum Capacitor 70V 3.3uF 5X10mm,3.3MFD,3.3MKF
Tantalum Capacitor 70V 4.7uF 5X10mm,4.7MFD,4.7MKF
Tantalum Capacitor 70V 6.8uF 5X14mm,6.8MFD,6.8MKF
Tantalum Capacitor 70V 10uF 5X14mm,10MFD,10MKF
Tantalum Capacitor 70V 15uF 6X16mm,15MFD,15MKF
Tantalum Capacitor 70V 22uF 6X16mm,22MFD,22MKF
Tantalum Capacitor 70V 33uF 8X16mm,33MFD,33MKF
Tantalum Capacitor 70V 47uF 8X16mm ,47MFD,47MKF
Tantalum Capacitor 70V 68uF 8X22mm，68MFD,68MKF
Tantalum Capacitor 70V 100uF 8X22mm,100MFD,100MKF
Tantalum Capacitor 70V 150uF 10X22mm,150MFD,150MKF
Tantalum Capacitor 70V 220uF 10X25mm,220MFD,220MKF
Tantalum Capacitor 70V 330uF 10X30mm,330MFD,330MKF
