1, Wide operating temperature range from -55°C to +125°C
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6,Storing a large amount of electrical energy in a small volume
7,Effectively reduces the energy loss caused by resistance in the circuit
8, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available

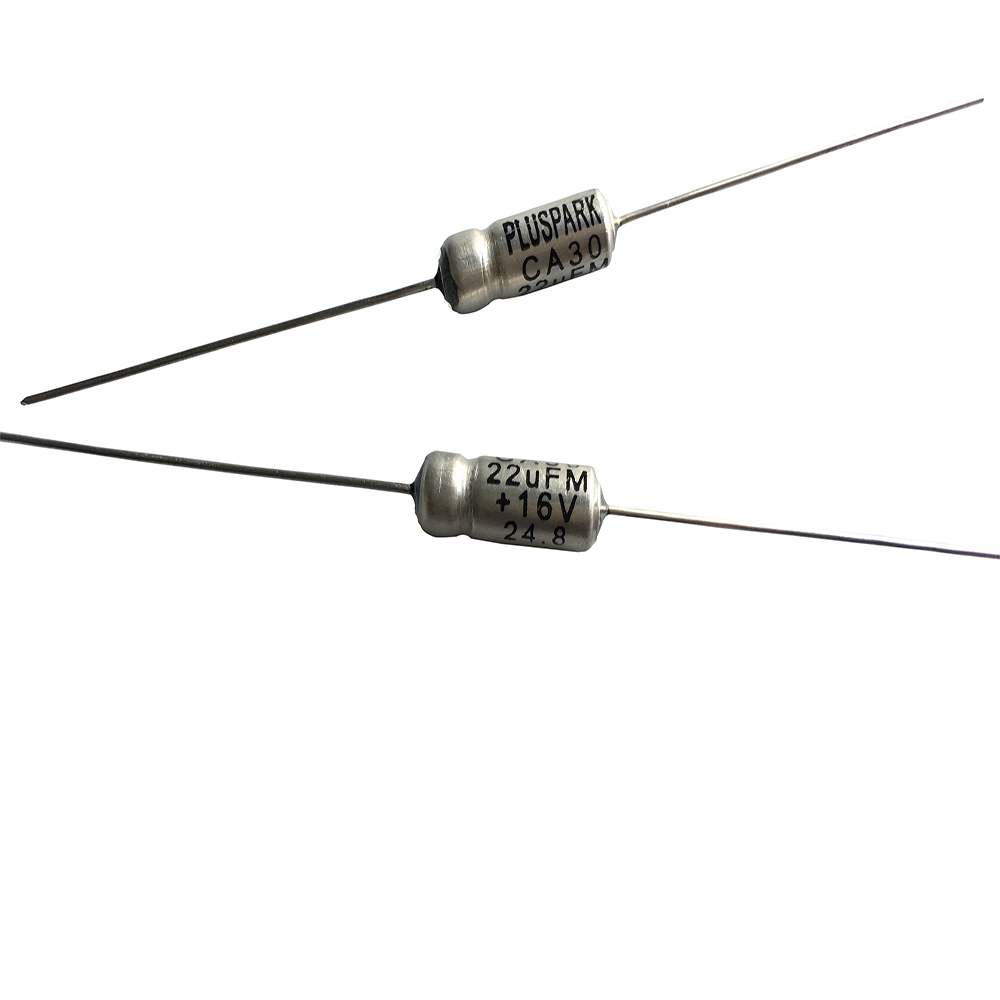

Tantalum capacitor | |
Item name | Wet Tantalum capacitor |
capacitance | 22uF,22MFD,22MKF |
Rated voltage | 16V |
Tolerance | M:(±20), K:(±10%) |
Nominal case Size (ΦD×L ) | 5x10mm |
Operate temperature | -55°C to +125°C |
Category Voltage | 10V |
Dissipation factor (max.) tgδ | 10 |
Impedance Ω (-55°c,100Hz) | 150 |
Series | CA30 |
Features | Hermetical seal, wet tantalum capacitor,low leakage current |
Mounting type | Through Hole |
Package/case | Axial wire leaded tubular case |
Brand | Pluspark |
Supplier | Shanghai Pluspark ElectronicsCo., ltd |
Rating of 16V
Tantalum Capacitor, Wet, Axial Wire Lead
Tantalum Capacitor 16V 1.0uF 5X10mm,1.0MFD,1.0MKF
Tantalum Capacitor 16V 1.5uF 5X10mm,1.5MFD,1.5MKF
Tantalum Capacitor 16V 2.2uF 5X10mm,2.2MFD,2.2MKF
Tantalum Capacitor 16V 3.3uF 5X10mm ,3.3MFD,3.3MKF
Tantalum Capacitor 16V 4.7uF 5X10mm,4.7MFD,4.7MKF
Tantalum Capacitor 16V 6.8uF 5X10mm,6.8MFD,6.8MKF
Tantalum Capacitor 16V 10uF 5X10mm,10MFD,10MKF
Tantalum Capacitor 16V 15uF 5X10mm,15MFD,15MKF
Tantalum Capacitor 16V 22uF 5X10mm,22MFD,22MKF
Tantalum Capacitor 16V 33uF 5X10mm,33MFD,33MKF
Tantalum Capacitor 16V 47uF 5X10mm,47MFD,47MKF
Tantalum Capacitor 16V 68uF 5X10mm,68MFD,68MKF
Tantalum Capacitor 16V 100uF 5X14mm,100MFD,100MKF
Tantalum Capacitor 16V 150uF 6X16mm,150MFD,150MKF
Tantalum Capacitor 16V 220uF 6X16mm,220MFD,220MKF
Tantalum Capacitor 16V 330uF 8X16mm,330MFD,330MKF
Tantalum Capacitor 16V 470uF 8X22mm,470MFD,470MKF
Tantalum Capacitor 16V 680uF 10X22mm,680MFD,680MKF
Tantalum Capacitor 16V 1000uF 10X25mm,1000MFD,1000MKF
Tantalum Capacitor 16V 1200uF 10X25mm,1200MFD,1200MKF
Tantalum Capacitor 16V 1500uF 10X30mm,1500MFD,1500MKF
