1, Wide operating temperature range from -55°C to +125°C
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6,Storing a large amount of electrical energy in a small volume.
7,Effectively reduces the energy loss caused by resistance in the circuit.
8, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available
|

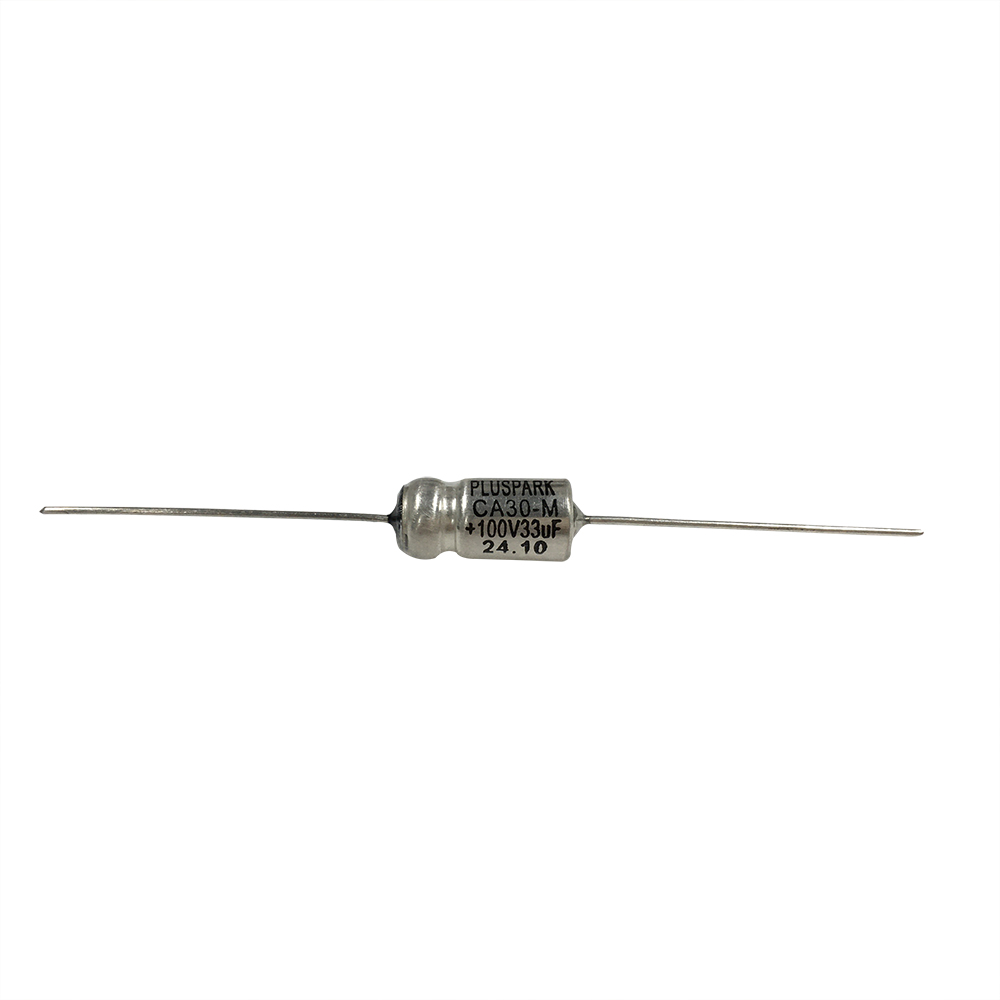

Tantalum capacitor |
|
|
Item name |
Wet Tantalum capacitor |
|
capacitance |
33uF,33MFD,33MKF |
|
Rated voltage |
100V |
|
Tolerance |
M:(±20), K:(±10%) |
|
Nominal case Size (ΦD×L ) |
8x16mm |
|
Operate temperature |
-55°C to +125°C |
|
Category Voltage |
63V |
|
Dissipation factor (max.)
tgδ |
15 |
|
Impedance Ω
(-55°c,100Hz) |
100 |
|
Series |
CA30 |
|
Features |
Hermetical seal, wet tantalum capacitor,low leakage
current |
|
Mounting type |
Through Hole |
|
Package/case |
Axial wire leaded tubular case |
|
Brand |
Pluspark |
|
Supplier |
Shanghai Pluspark ElectronicsCo., ltd |
Rating of 100V
Tantalum Capacitor, Wet, Axial Wire Lead
Wet Tantalum Capacitor 100V 1.0uF 5X10mm,1.0MFD,1.0MKF
Wet Tantalum Capacitor 100V 1.5uF 5X10mm,1.5MFD,1.5MKF
Wet Tantalum Capacitor 100V 2.2uF 5X10mm,2.2MFD,2.2MKF
Wet Tantalum Capacitor 100V 3.3uF 5X10mm ,3.3MFD,3.3MKF
Wet Tantalum Capacitor 100V 4.7uF 5X10mm,4.7MFD,4.7MKF
Wet Tantalum Capacitor 100V 6.8uF 5X14mm,6.8MFD,6.8MKF
Wet Tantalum Capacitor 100V 10uF 5X14mm,10MFD,10MKF
Wet Tantalum Capacitor 100V 15uF 6X16mm,15MFD,15MKF
Wet Tantalum Capacitor 100V 22uF 6X16mm,22MFD,22MKF
Wet Tantalum Capacitor 100V 47uF 8X16mm,47MFD,47MKF
Wet Tantalum Capacitor 100V 68uF 8X22mm,68MFD,68MKF
Wet Tantalum Capacitor 100V 100uF 10X22mm,100MFD,100MKF
Wet Tantalum Capacitor 100V 150uF 10X25mm,150MFD,150MKF
Wet Tantalum Capacitor 100V 220uF 10X30mm,220MFD,220MKF
