1, Wide operating temperature range from -55°C to +125°C
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6,Storing a large amount of electrical energy in a small volume
7,Effectively reduces the energy loss caused by resistance in the circuit
8, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available

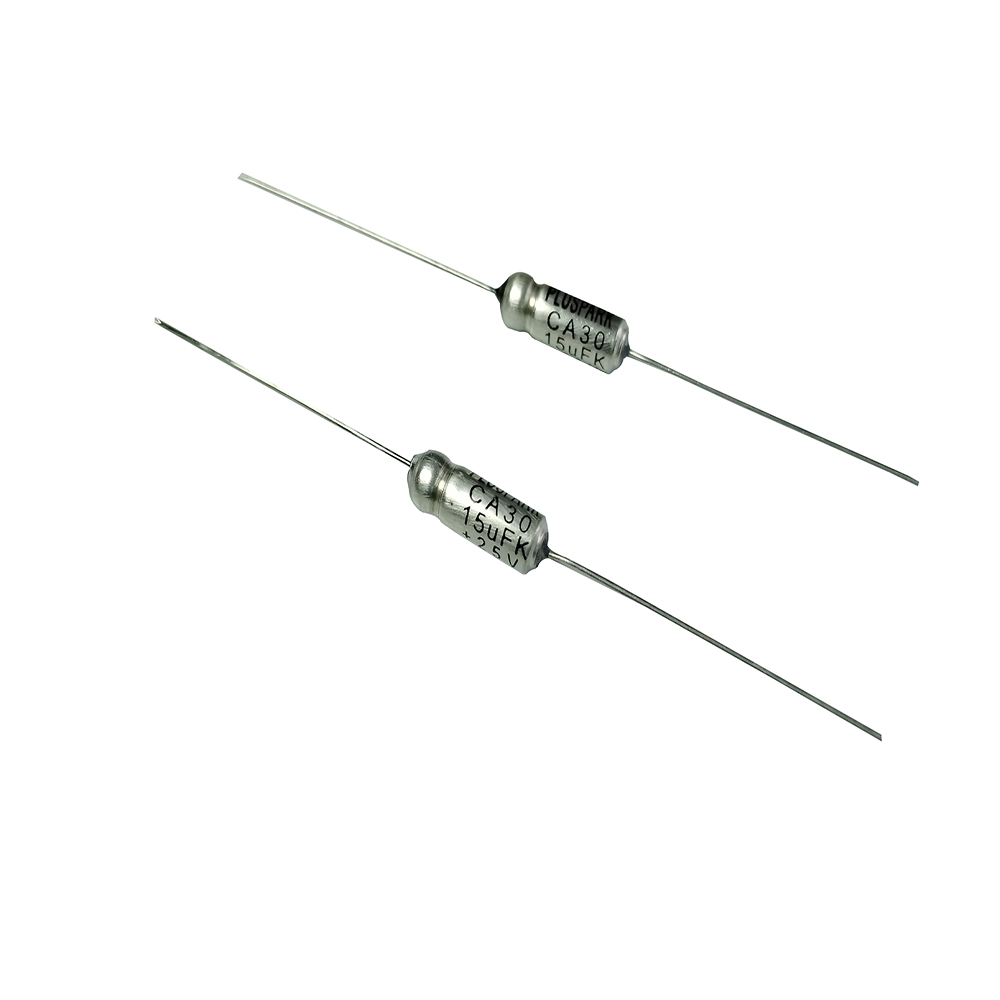

Tantalum capacitor | |
Item name | Wet Tantalum capacitor |
capacitance | 15uF,15MFD,15MKF |
Rated voltage | 6.3V to 125V |
Tolerance | M:(±20), K:(±10%) |
Nominal case Size (ΦD×L ) | 5*10mm |
Operate temperature | -55°C to +125°C |
Rated Voltage | 40V |
Category Voltage | 25V |
Dissipation factor (max.) tgδ | 10 |
Impedance Ω (-55°c,100Hz) | 175 |
Series | CA30 |
Features | Hermetical seal, wet tantalum cap,low leakage current |
Mounting type | Through Hole |
Package/case | Axial wire leaded tubular case |
Brand | Pluspark |
Supplier | Shanghai Pluspark Electron |
