1, Wide operating temperature range from -55°C to +125°C.
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6, Effectively reduces the energy loss caused by resistance in the circuit.
7, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available.
8, very high CV per unit volume

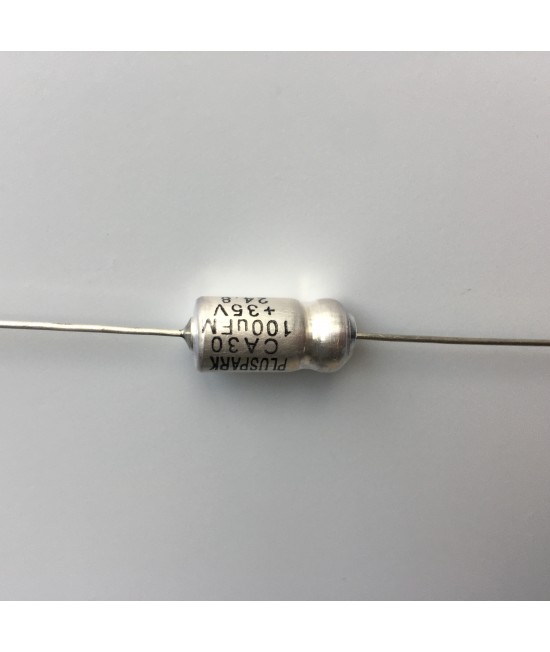

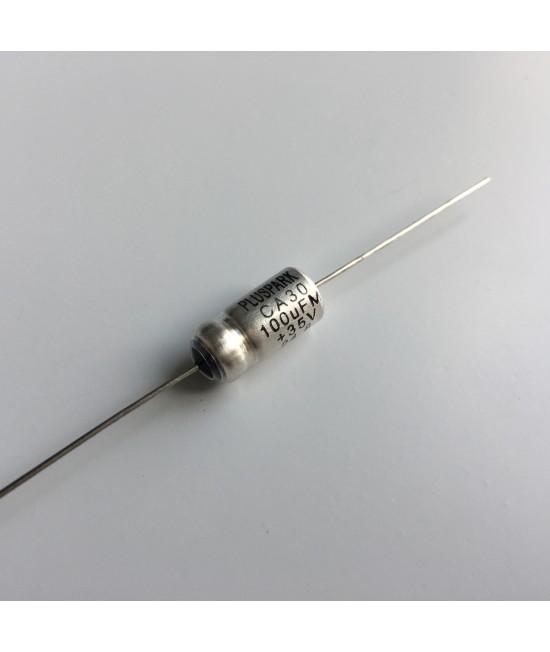

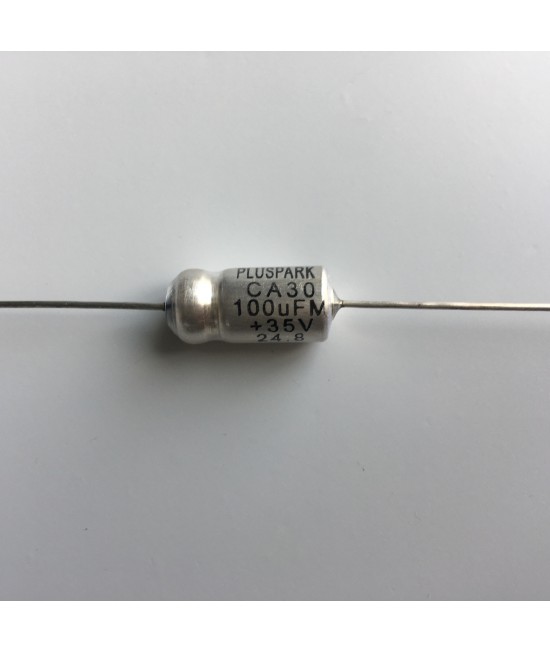

Tantalum capacitor | |
Item name | Wet Tantalum capacitor |
capacitance | 100uF,100MFD,100MKF |
Tolerance | M:(±20), K:(±10%) |
Nominal case Size (ΦD×L ) | 8*22mm |
Operate temperature | -55°C to +125°C |
Rated Voltage | 75V |
Category Voltage | 50V |
Dissipation factor (max.) tgδ | 20 |
Impedance Ω (-55°c,100Hz) | 60 |
Series | CA30 |
Features | Hermetical seal, wet tantalum cap,low leakage current |
Mounting type | Through Hole |
Package/case | Axial wire leaded tubular case |
Brand | Pluspark |
Supplier | Shanghai Pluspark Electron |
