Features：
1, Wide operating temperature range from -55°C to +125°C
2, Epoxy end-filled, prevents internal components from being affected
3, Good high-frequency characteristics, quickly respond to signal changes
4, Low leakage current, minimizes the leakage of current
5, Long service life in excess of ten years
6,Storing a large amount of electrical energy in a small volume.
7,Effectively reduces the energy loss caused by resistance in the circuit.
8, Standard Tin/lead (SnPb),100%Tin (RoHS compliant) available
|

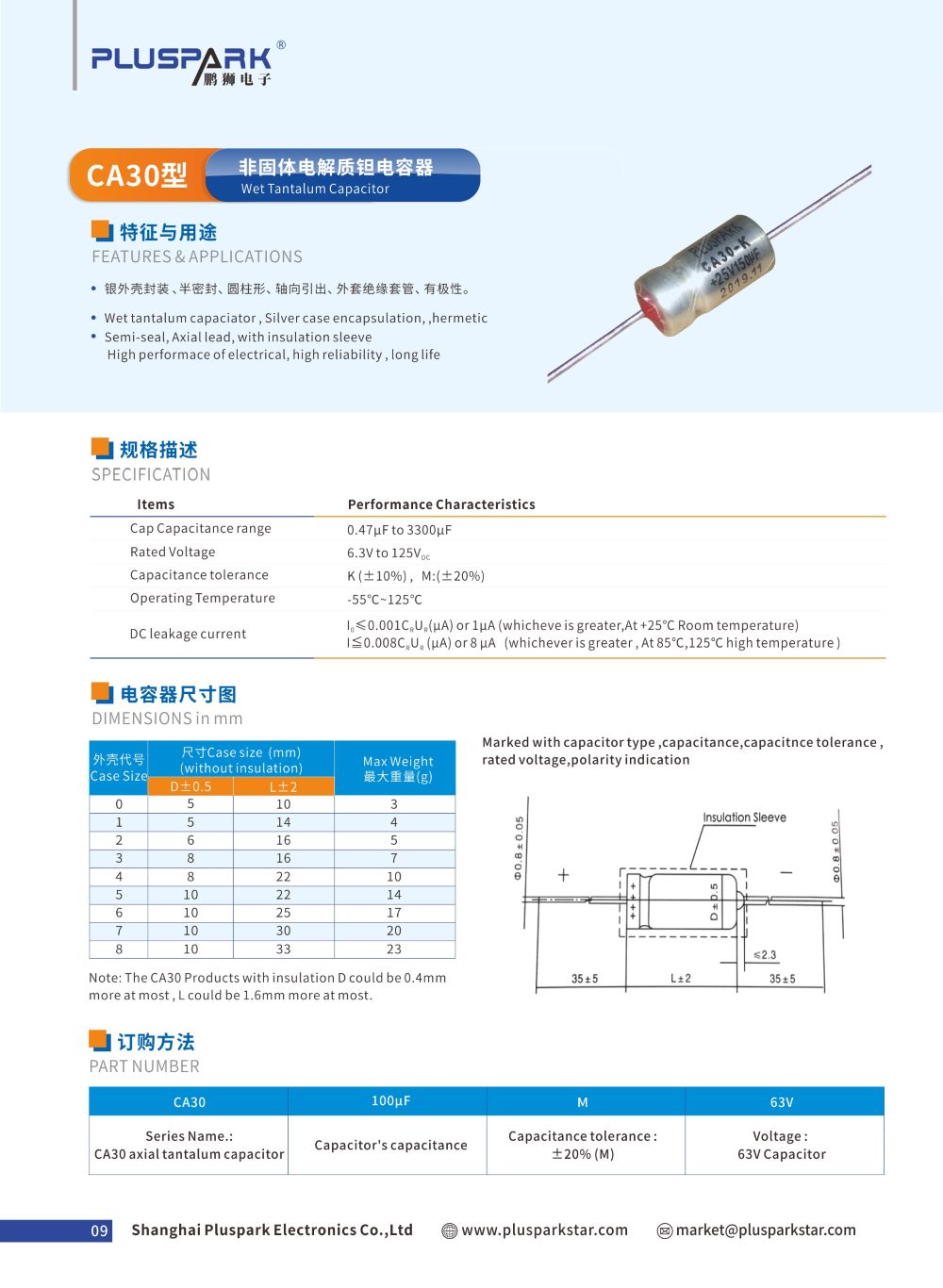

Family |
Tantalum capacitor |
|
Item name |
Wet Tantalum capacitor |
|
capacitance |
1.0uF-3300uF |
|
Rated voltage |
6.3V to 125V |
|
Tolerance |
M:(±20%), K:(±10%) |
|
Nominal case Size (ΦD×L ) |
6x16mm |
|
Operate temperature |
-55°C to +125°C |
|
Series |
CA30 |
|
Features |
Hermetical seal, wet tantalum cap,low
leakage current |
|
Mounting type |
Through Hole |
|
Package/case |
Axial wire leaded tubular case |
|
Brand |
Pluspark |
|
Supplier |
Shanghai Pluspark Electron |
